Smart Drive

Control, diagnostics and maintenance tracking for TESCO AC top drives.

Smart Suite

What is Smart Drive?

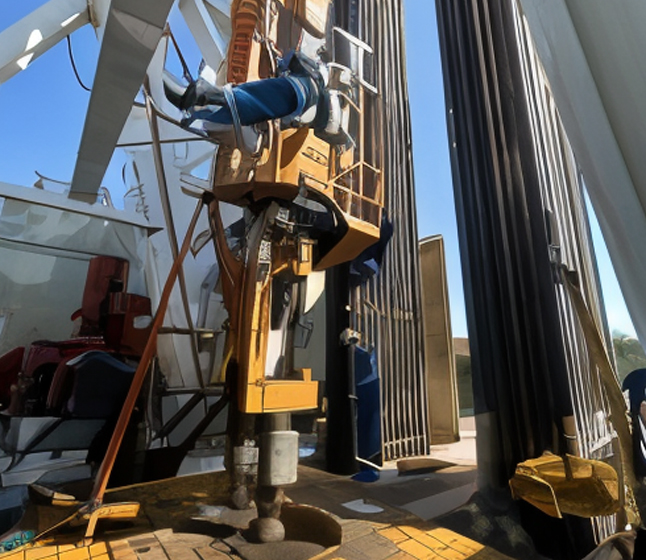

Smart Drive is the CanGlobal E3 control package for TESCO AC top drives. It puts a CanGlobal E3 PLC system and touchscreen HMI on the rig and gives the crew a clear view of the drive, the PLC and the maintenance schedule. It is also the base the rest of Smart Suite plugs into.

  • Touchscreen HMI at the driller's console with live speed and torque
  • Drive data screen shows every permissive, so the crew sees why the drive won't rotate
  • Maintenance tracking: rotating hours, service intervals and gearbox oil life
  • Main PLC and driller's console I/O on screen, with no laptop needed
  • Adds Smart Slide, Smart Torque, Smart RSS and Smart Zone
  • Smart Link remote access standard

Works with: TESCO MD 500, ECI 900, ECI 1350, EMI and EXI top drives.

Drive data screen: permissives as green lights, plus speed, torque, current and temperatures.
Drive data screen: permissives as green lights, plus speed, torque, current and temperatures.

Key features

Drive data

Every condition the drive needs to rotate, shown as a light. Almost any operator can pinpoint a fault.

Maintenance tracking

Daily to 1,000-day tasks with step-by-step instructions and a check-off for each one.

PLC visibility

Zoom in on any PLC card to see live inputs and outputs against the schematics.

Settings and limits

Torque and speed limits, autotune, lamp test and power unit settings in one menu.

Upgrade path

Add Smart Slide, Smart Torque, Smart RSS or Smart Zone to the same HMI.

24/7 support

Smart Link remote access lets our team troubleshoot without a trip to the rig.

How it works

  1. Upgrade the controlsWe fit a CanGlobal E3 Emerson PACSystems PLC system and a Beijer touchscreen HMI to the top drive and VFD.
  2. Map every signalDrive permissives, main PLC I/O and driller's console I/O are shown on screen, with schematics.
  3. Set the maintenance planService intervals from daily to 1,000-day recertification are loaded and tracked automatically.
  4. Connect supportA Smart Link gateway gives our team secure 24/7 access when the rig allows it.
  5. Add modulesSmart Slide, Smart Torque, Smart RSS and Smart Zone run on the same PLC and HMI.

Specifications

Top drivesTESCO MD 500, ECI 900, ECI 1350, EMI and EXI
ControllerEmerson PACSystems RX3i PLC
HMIBeijer X2 pro touchscreen
Drive dataPermissives, speed, torque, current, DC bus and temperatures
MaintenanceDaily to 1,000-day intervals with step-by-step tasks
Remote accessSmart Link, rig-initiated encrypted VPN
Support24/7 from Calgary

On screen

Talk to us about Smart DriveCall +1 (866) 664-7373, 24/7, or send us a message.
